Regarding energy efficiency in homes, windows play a crucial role. One of the key measures of a window’s thermal performance is its U-factor. In simple terms, the U-factor measures the rate of heat transfer through a window assembly, including the glass, frame, and any additional components. We will delve into the concept of window U-factors, exploring their significance, how they are calculated, and their impact on energy efficiency. By the end, you will have a good understanding of window U-factors and their role in optimizing energy performance in homes.
Window U-Factors For Math Geeks
I’d be remiss if I went through this entire post without giving the nod to the math behind U-Factors for all engineers and mathematicians. So here goes…
The U-factor of a window quantifies how well it can resist heat flow. It is expressed in units of BTU/(hr·ft²·°F) and a lower U-factor indicates a better insulating window. U-factor considers the heat transfer through the glazing, frame, spacers, and other components of the window assembly. It measures the overall heat loss or gain a window allows, considering both conduction and radiation.
All that we laymen need to know about the U-Factor of a window is this; the lower, the better.
Calculating U-factors is a complex process that involves considering various factors. The Fenestration & Glazing Industry Alliance (FGIA) and the National Fenestration Rating Council (NFRC) provide standardized methods for determining U-factor considering factors such as the materials’ thermal conductivity, the window components’ surface area, and the glazing’s thermal resistance.
The U-Factor of a window is taken as a composite of the entire window; it’s not just a function of the glass. This is an important distinction. Two windows that look identical and have the same glass package but are composed of different frame materials will have different U-factors depending on the properties of the frames.
As another example, you could have two windows composed of the same materials, but one has a wider frame (less glass area) and grids covering parts of the glass, and that window would have a lower U-factor.
Impact on Energy Efficiency
Every window or door will have an NFRC sticker affixed. U-factor is one of the four values reflected, the other three being Solar Heat Gain Coefficient (SHCG), Visible Transmittance (VT), and Air Leakage; for more on how to read an NFRC label, there’s a great video breakdown here.
The U-factor directly affects the energy efficiency of a home. Windows with lower U-factors provide better insulation and reduce heat transfer between indoor and outdoor environments. This means that during colder months, less heat is lost from the interior, while during hotter months, less heat is gained from the exterior. As a result, your home requires less energy for heating and cooling, leading to reduced energy consumption and lower utility bills!
Other factors such as SHGC and VT also play significant roles. SHGC measures the amount of solar radiation that enters through a window, while VT measures the amount of visible light transmitted. These factors should be considered together to balance energy efficiency, daylighting, and thermal comfort.
Low-E Coatings and U-Factor

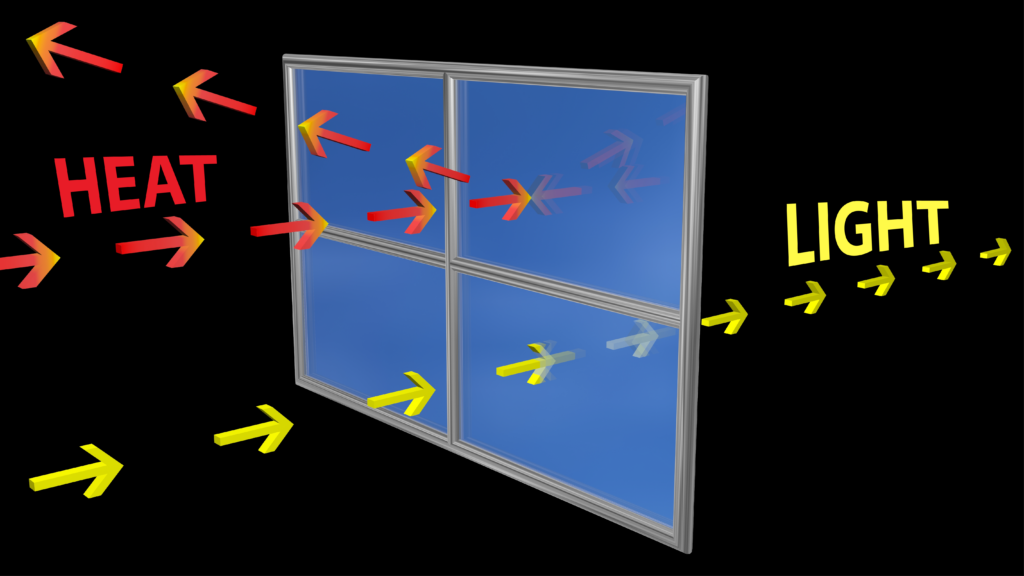

Low-E coatings are designed to minimize the amount of infrared and ultraviolet radiation that can pass through a window while allowing visible light to enter. A thin, virtually invisible metallic layer of silver oxide is applied to the glass surface between the panes of an insulated glass unit (IGU). This layer reflects a significant portion of heat back to its source, reducing heat transfer through the window.
Windows with low-E coatings have significantly lower U-factors than those without such coatings. The silver oxide layer reflects a substantial portion of the heat radiation, decreasing the window’s overall heat transfer coefficient. This means the window becomes more resistant to heat flow, increasing its insulation value.
The impact of low-E coatings on U-factors can vary depending on the type of coating used, the number of layers applied, and the specific window design. However, low-E coatings generally reduce U-factors by up to 50% compared to windows without any coating. This substantial reduction in U-factor demonstrates the effectiveness of low-E coatings in improving the energy efficiency of windows.
Why Window U-Factors Matter
Window U-factors are crucial in determining your home’s thermal performance and energy efficiency. A lower U-factor indicates better insulation and reduced heat transfer, leading to energy savings and improved comfort. U-factors must be considered alongside other factors such as SHGC and VT to select windows that align with your energy efficiency goals. By understanding U-factors and their significance, one can make informed decisions when choosing windows, contributing to more sustainable and comfortable built environments.
